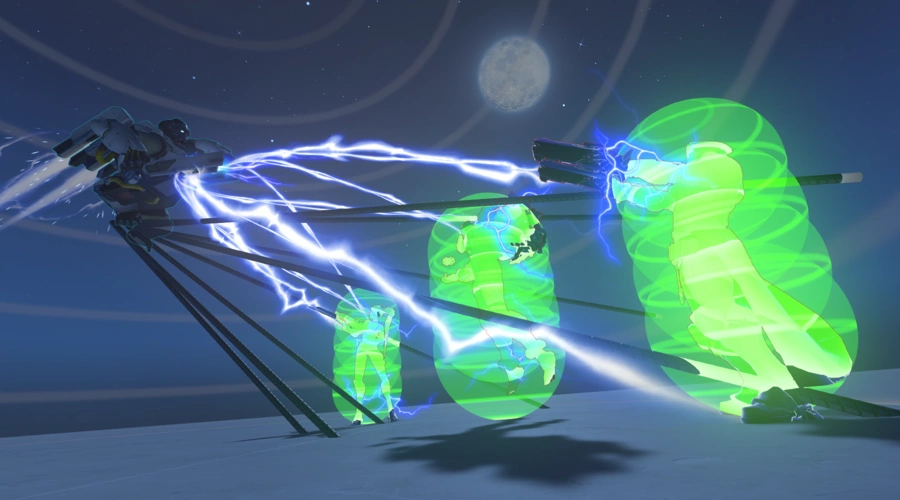

A mode showing various abilities' hitboxes in action.

Also showing the hero's melee hurtbox that these hitboxes will interact with.

The current supported abilities are:

All Heroes - Quick Melee
Genji - Dragon Blade
Reinhardt - Charge, Shatter
Winston - Tesla Cannon, Primal Rage
Hanzo - Dragonstrike
Sigma - Gravitic Flux
Lúcio - Soundwave
Doomfist - Rising Uppercut, Meteor Strike
Roadhog - Chain Hook
Wrecking Ball - Piledriver
D.Va - Call Mech

It is recommend to only 2 human players since the mode involves many effects.

(OBSOLETE) 23 Mar, 2021: EXPERIMENTAL CHANGES on Hanzo's Dragonstrike, please use code 9KYSG

Explanation

In Overwatch, a melee hurtbox (MH) was used for each hero to determinate hits from large area-of-effect based attacks. This is generally faster to calculate than using the more detailed hitboxes that were dedicated for bullets and projectiles.

The shape of MHs is an upright capsule. The bottom of the capsule will always coincide with the player's origin, and the capsule will always remain upright, even when the hero was knocked down by Earthshatter or slept by Sleep Dart, for example. In this Workshop mode, the MHs are represented by 4 spheres.

The player can manipulate the MH's size by crouching. This will reduce the height of the capsule, and can possibly dodge and avoid some attacks.

Quick Melee Hurtbox

There are 9 unique "standing" dimensions. Since radius remained unchange when crouching, there are 5 unique "ducking" dimensions.

All numbers to nearest 2 decimal places.

Radius (m)	Height (m)	Duck Height (m)	Heroes
0.50	2.00	1.30	Reaper, Mercy, Hanzo, Pharah, Widowmaker, Symmetra, Zenyatta, Genji, McCree, Junkrat, Zarya, Soldier: 76, Lucio, D.Va (pilot) , Ana, Brigitte, Moira, Ashe, Echo, Baptiste
0.50	1.97	1.30	Mei
0.50	1.89	1.30	Sombra
0.50	1.55	1.30	Torbjorn
0.50	1.99	1.30	Tracer
0.70	2.00	1.72*	D.Va (mech)
0.70	2.30	1.72	Reinhardt, Bastion, Roadhog, Doomfist, Orisa
0.70	2.50	1.72	Winston
0.70	2.50	2.05	Sigma
0.95	2.00	2.00*	Wrecking Ball

(*) Cannot crouch under normal circumstances.

Quick Melee Hitbox

The hitbox for Quick Melee is a sphere 1.5m away from the facing direction of the player, with a radius of 1m.

The hitbox will stay active for 0.16s. The hitbox visualized in-game will turn from blue to yellow to reflect the active period.

During this period, the player can look elsewhere to reposition this hitbox and damage others even if they were out of reach initially.

Reinhardt's Rocket Hammer / Winston's Primal Rage

These two abilities have similar mechanics for their hitboxes.

The hitboxes consists of two spheres moving in some set positions across the duration of the ability. This is done to match the animation of the ability. For these two heroes, there are two sets of attack, the left-to-right and right-to-left, and the hitboxes move accordingly. When the hitboxes move, the volume in-between the initial and final position are not considered.

The hitboxes stay active for some time after reaching the final position of that swing, hence, similar to Quick Melee, one is able to extend the range by looking around.

Again, the in-game spheres will turn yellow when it is active.

Roadhog's Chain Hook

Hook works also similar to Hammer and Primal, but with the added constraint of checking collision with the world (Hook ending early if colliding with the map geometry), and the path of the spheres will lock 0.16s after activating the ability.

The radius of the sphere is 0.5m, and the final position of the hitbox are always at 20m away from the facing direction of the player, regardless of player scale.

For Hook only, the intermediate spheres visualized only applied to a player scale of x1.0

Doomfist's Meteor Strike

The hitbox is a sphere centered at 0.1m above the landing position of Doomfist.

The damage dealt depends on the distance from this center to the surface of the target's MH. If the distance is less than 2, the damage is fixed at 300, indicated by the red sphere.

Otherwise, the damage scales from 200 to 15 linearly at distances from 2 to 8, indicated by the larger aqua sphere.

You can preview the damage dealt to nearby enemies using the aqua-coloured text above their heads (when not zoomed out during Ult), if you were to land at the current position.

Wrecking Ball's Piledriver

The mechanic is identical to Meteor Strike, except the dimensions and damage numbers changed.

If the distance is less than 1.5, the damage is 100, indicated by the red sphere. Otherwise, the damage scales from 100 to 20 linearly at distances from 1.5 to 8, indicated by the larger aqua sphere.

Note: There are some issue with the predictions compared to Meteor Strike. This may be caused by the rapid movement during the slam, and causing the actual center of Piledriver to deviate from the theoretical value. However, if Start Forcing Player Position is used to lock Ball's position, then the prediction is 100% accurate.

Hanzo's Dragonstrike

There are 3 criterias to damage an enemy using the Dragon.

A positive distance to the plane of the portal

The Dragon arrow will travel 10m, disappears, and then the Dragon will spawn at the 11m mark. The target must be on the same side of the plane with a normal of the direction of the Dragon arrow.

In-game, the HUD "Dist to Dragon Plane" indicates this shortest distance to said plane, and must be positive.

Intersecting the Dragon's hitbox

The Dragon's hitbox, are 7 spheres, separated 5m apart, each with a radius of 4m. Hence the distance between the first and last sphere is 30m, and the maximum range is 38m. They are indicated by the blue spheres.

The target will receive 28.8 damage every 12 game ticks (0.192s), effectively dealing 150 dps.

2.4m within the axis of the Dragon

The axis of the dragon is identical to the direction of the initial arrow.

If the distance between the target's origin and the axis is less than 2.4m, the target will receive 57.6 damage every 12 game ticks (0.192s), effectively dealing 300 dps.

This area is approximated by the red spheres.

Additional info:

The Dragon travels at 12m/s for exactly 20 second, covering 240m in total.

The dimensions (size, speed etc.) for the Dragon is always the same, regardless of the player's scale.

Doomfist's Rising Uppercut

Very similar to Quick Melee, except that looking up or down has no effect on the position of the hitbox.

Sigma's Gravitic Flux

The actual center of Flux is located 5.5m below the targeted floor. The hitbox is a combination of a sphere with radius 15.5m, and a cylinder of radius 8m. The cylinder's base aligns with the height of the center of Flux. Therefore, the effective height from the targeted floor is 10m, and are able to extend below the floor by 5.5m. The target's MH must intersect both the sphere and the cylinder (plus LOS check, of course).

If the targeted point is B, then the actual center is at D. The hitbox is then the yellow area. An enemy located at K would be considered inside the hitbox, if BC is a vertical wall.

D.Va's Call Mech

As with patch 1.61, some aspects of Call Mech was changed, so the following may not apply. Changes to the mode will be made.

1.61 patch notes: D.Va: Fixed a bug that allowed her Call Mech ability to damage enemies through walls

With the 250 damage buff, this becomes more relavant in-game so I did another round of test on this ability.

The shape of Call Mech's hitbox is a sphere. There is no falloff, so if your MHB are intersecting the hitbox, you'll take the full 250. The radius is 3.0 meters. The center located at 2.0 meters in-front and 0.5 meters above D.Va's origin at the moment the Mech touches down. The location of the Mech is just where D.Va will end up after the transformation, it does not reflect the true position of the actual hitbox. See diagram below.

In this mode, the hitbox is represented by the red sphere, with a smaller sphere indicating the center. The damage numbers on top of the enemies does not consider any sliding (for example, when ulting against a wall) D.Va will make during the Mech drop)
